10   Body Controller




Now I am going to constrain to the spine joints to the boxes.
Always use Parent Constrain to attach the joints except the wrist joint.
Always use Point Constrain to attach the IKhandle.


1.

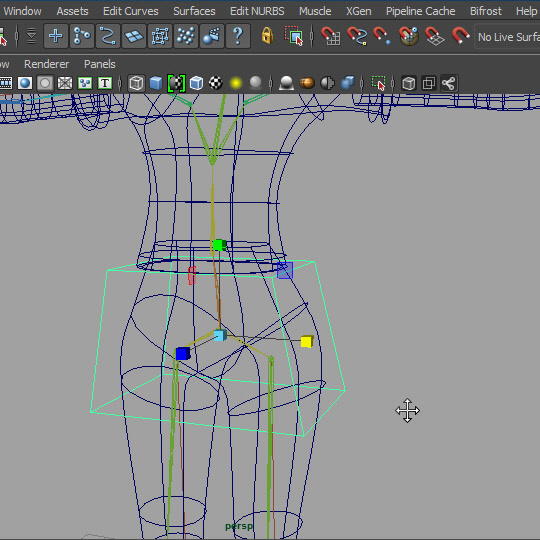

Place a box on the pelvis.
Modify vertices to change the shape if needed.



2.

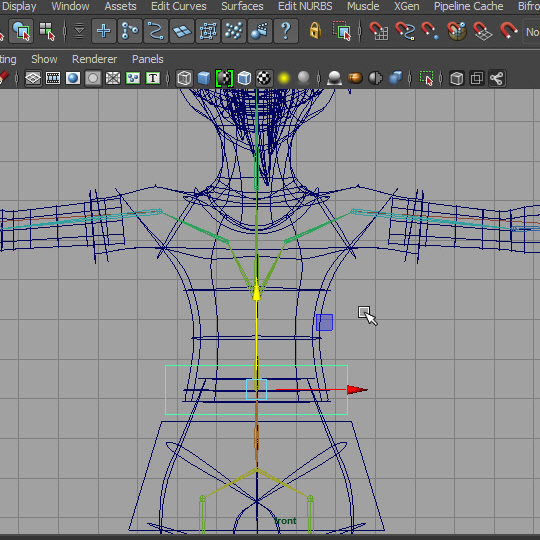

Place a box around the waist.

3.

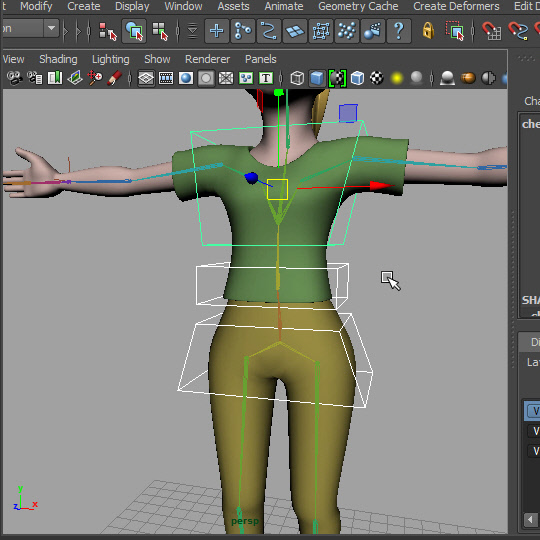

Place a box around the chest.


4.

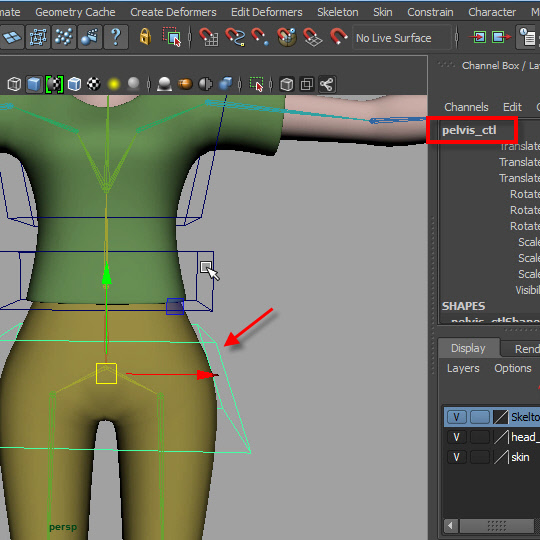

Rename as pelvis_ctrl


5.

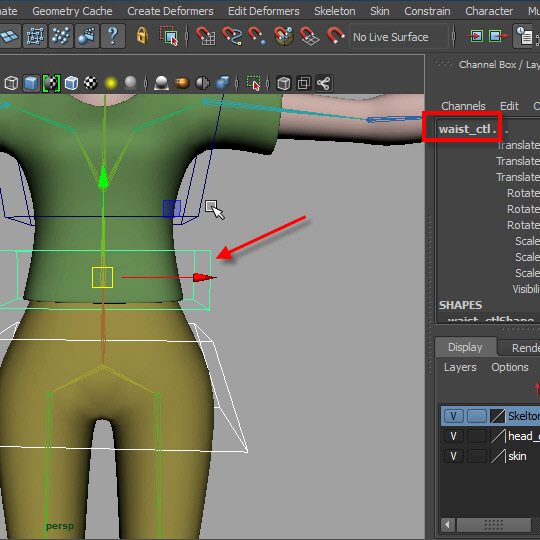

Rename as waist_ctrl


6.

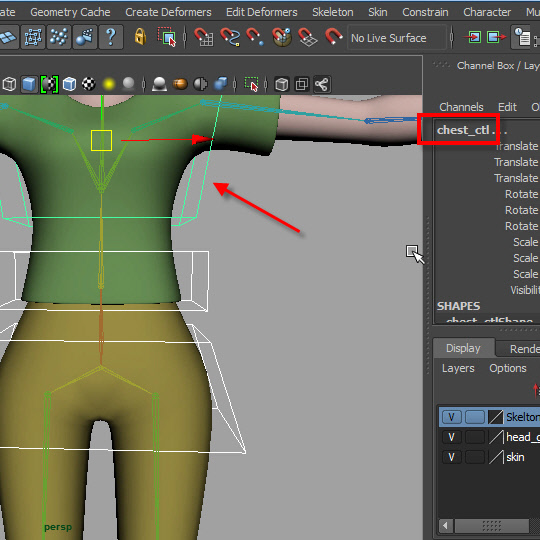

Rename as chest_ctrl

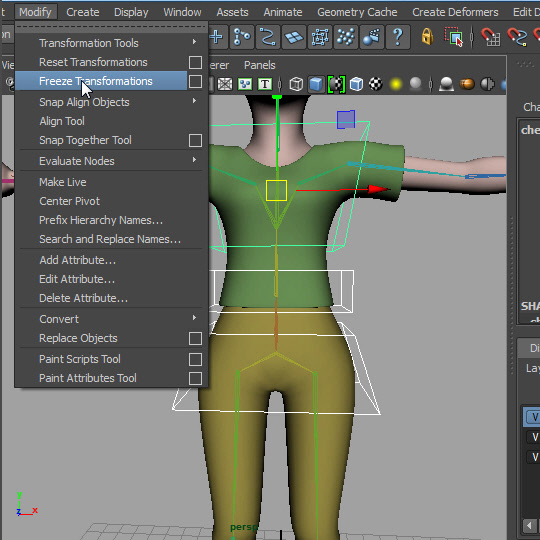

7.   Freeze Transformations

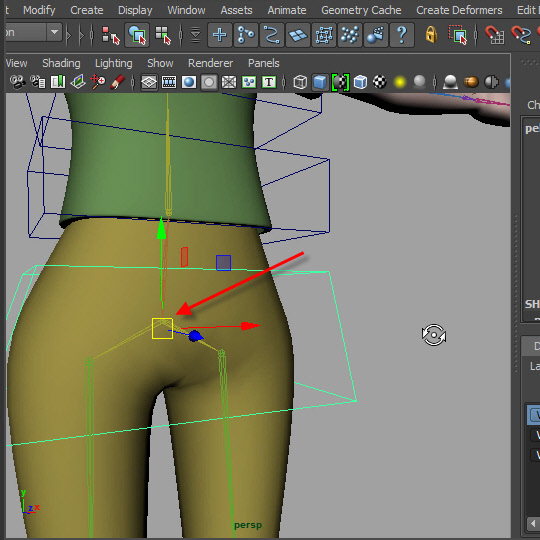

8.  Move the pivot to the pelvis joint.

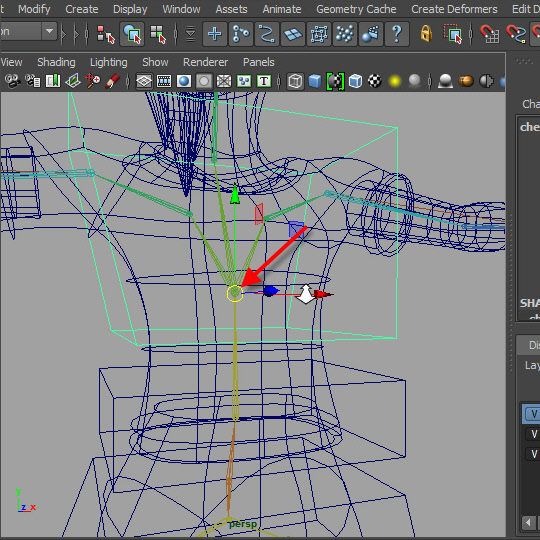

9.    Move the pivot to the chest joint.



10.

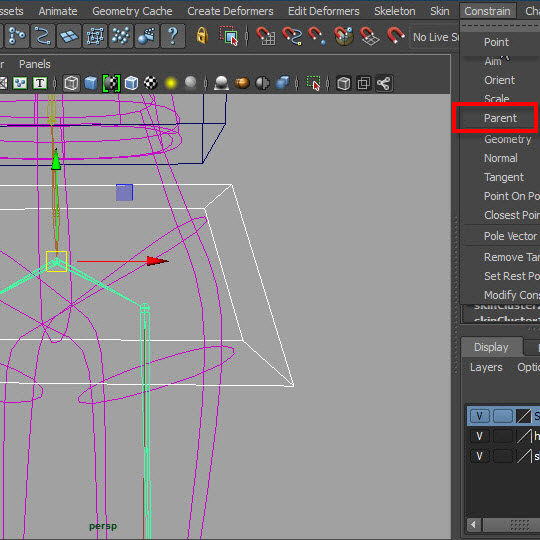

Apply Parent constrain.






12.

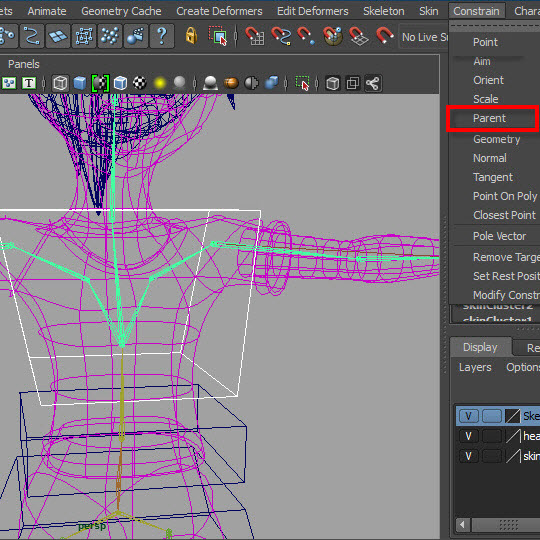

Apply Parentt constrain.




14.

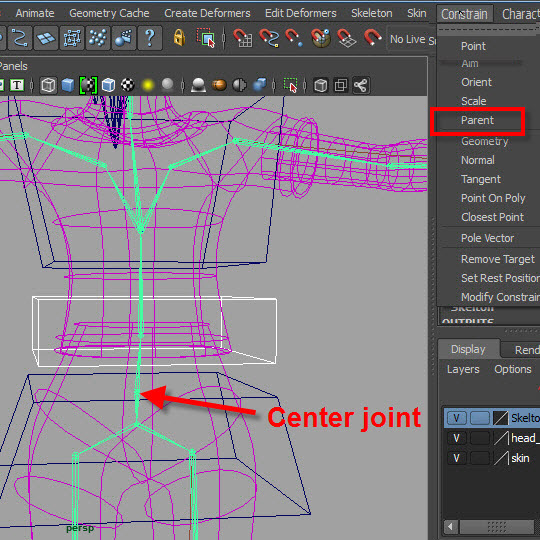

Select the waist controller first, then select the center joint (the top joint).
Apply Parent constrain.







-10-
